Set Include:
2 Door Control Panel x 1
EM Lock x 2
Push Button (with Wait/Go Indicator) x 4
Emergency Push Button x 1

Technical Specifications:
Control Panel:
Input Voltage: AC 220V , 50Hz
Operating Voltage: 12VDC
Number of Door: 2Door-Single Room(Up to 8Door interlock available)
Short Circuit Protection: Yes
Detect Door(Open/Clouse) Feedback : Yes

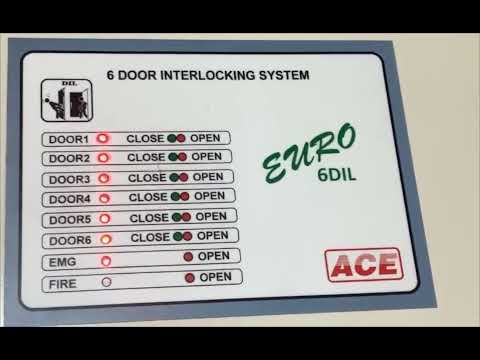

Door Open/Clouse Indication Output: Yes (wait/Go Indication)
Emergency Release Output : Yes
Data Log : No
Access Control : Yes , Optional(Biometric Fingerprint/Face/Iris/Card/Tag)
Fire Emergency Release: Yes (Optional)
Buzzer: No (Can be Add as per Requirement)

EM Lock:
Mounting  Type: Door
Holding force : 280Kg /600Lbs
Weight: 2 Kg
Working current / voltage:  DC12V/450mA / DC24V/230mA
Signal Output : NO/NC/COM + Feedback To Controller

Push Button:
Push Switch: 1Nos (Inbuilt)
"Wait" Indicator: 1Nos (Inbuilt)
"Go" Indicator: 1Nos (Inbuilt)

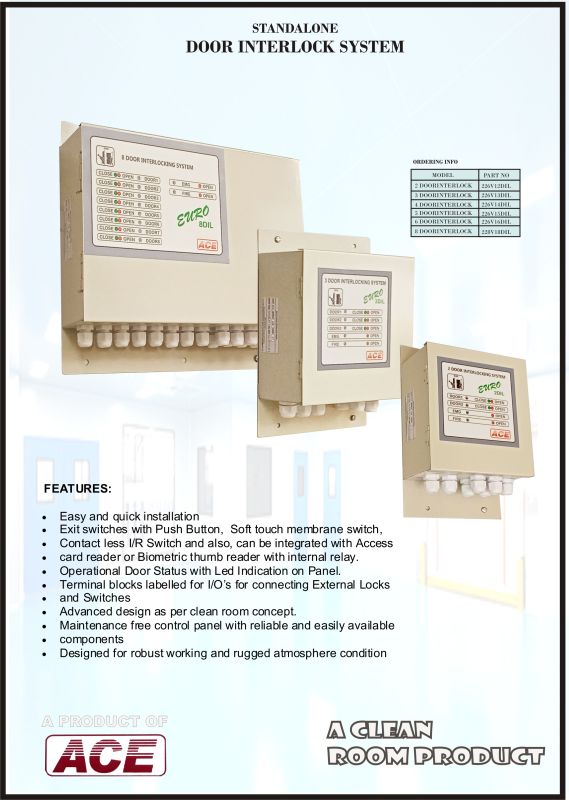

We are manufacturer and supplier of Door Interlock System. We have a variety of options in our Door Interlock Systems. Such as Electro Magnetic Door Interlock System, Drop Bolt Lock etc.

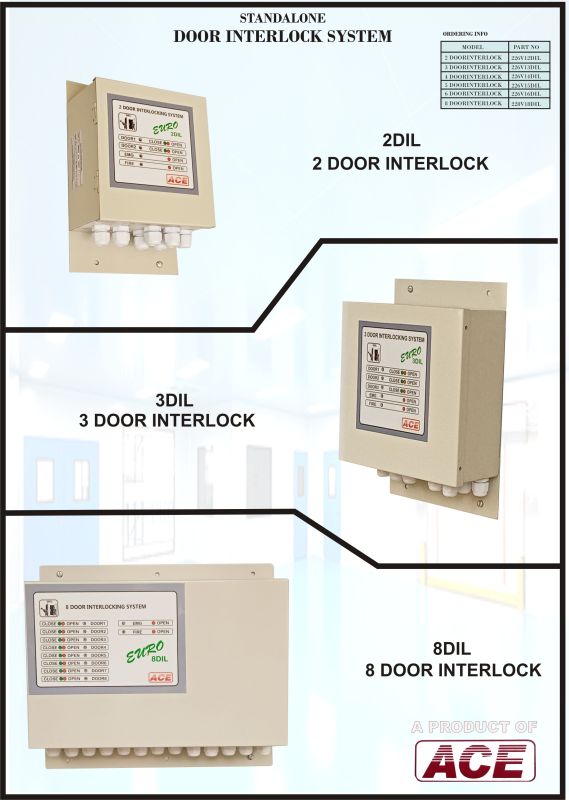

Door Interlock system is capable of Controlling up to 8 doors using single controller. It is a system which on request allows access to only one door for a predefined time and makes other door secure within the designated area. The system aids in minimizing the microbial, particulate contamination and helps maintaining pressure difference between rooms.

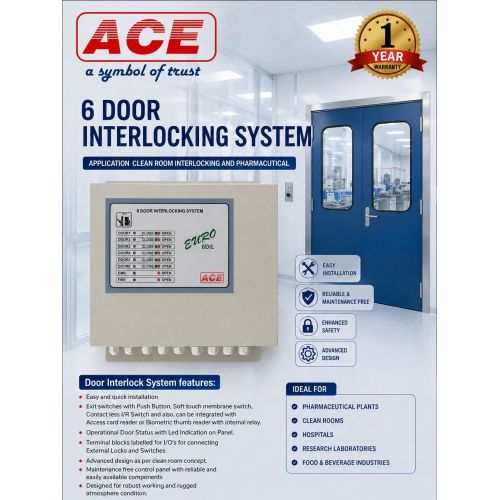

These systems are easy to install and provide complete security. These system is mainly used in pharmaceutical industries, Laboratories, API Plant, Chemical and Gas industries. We provide our valuable clients installation solution and service too..We have three types of solutions like, normal relay based,  Microprocessor based and PLC based. We are using SMPS in our control panel to avoid input supply fluctuation.
